Veronika - 2010 Robot

Veronika was built for the 2010 FIRST game - Breakaway.

Drivetrain

Four wheels driven by two Andy Mark Tough Boxes with two CIMs.

Arm

• Gas spring expansion
• Grabs side pole
• Pulled by CIM driven belt winch

Sensors

• Limit switches
• Potentiometers

Features

• Easy control system drop down
• Mostly Modular

Weight: 105 pounds

Dimensions: 27.5 x 37.5 x 17.75

View Pictures in Media Gallery

---

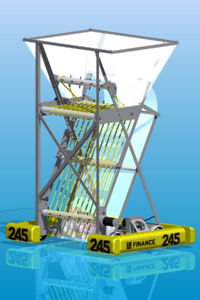

Olympia - 2009 Robot

Olympia was built for the 2009 FIRST game - Lunacy.

Drivetrain

Four wheels driven by two Andy Mark Tough Boxes with 8.45:1 gear ratio and one CIM each.

Roller System

• Two independent belts, both driven by CIMs with Andy Mark GEM500 gear boxes at 3.67:1.
• Rollers are made of PVC with air hoses going through the center for better ball handling.
• Amount of squish between roller and back: about 7-8 inches

Sensors

• Kit Encoders on both transmissions
• Yaw rate sensor

Features

• Easy to replace rollers
• Easy control system drop down
• Mostly Modular

Weight: 115 pounds

Dimensions: 27.5 x 37.5 x 59.5

View Pictures in Media Gallery
View Videos in Media Gallery

---

Amelia - 2008 Robot

Amelia was built for the 2008 FIRST game - FIRST Overdrive.

Drivetrain

• Six wheels, two skid wheels and four omni-wheels.
• Four driven by two Andy Mark Tough Boxes with 12.75:1 gear ratio and one CIM each.

Arms

• Two formed PVC pipes
• Driven by kit van door motor
• Pneumatic grab and release

Ball Shooter

• Two-halves of a garage spring with a combined force of over 300 pounds
• Driven back by two globe motors
• Released by small kit pneumatic

Ball Swatter

• PVC pipe with pneumatic winch

Sensors

• Kit hall effect sensors in both transmissions
• Yaw rate sensor

Features

• Fully Modular construction

View Pictures in Media Gallery
View Videos in Media Gallery

---

Arcadia - 2007 Robot

Arcadia was built for the 2007 FIRST game - Rack 'N' Roll.

Drivetrain

• Four wheels (powered), all with DeWALT transmissions
• Front and rear wheel steering, a.k.a. crab/swerve drive

Manipulator

• Jointed arm with gripper that deploys by spreading its "flippers" on the inside of the tube

Ramp

• Aluminum framing topped with a wire mesh
• Deployed by pneumatic latch and raised by cam wheels as robot drives forward

View Pictures in Media Gallery
